High-Capacity Reverse Osmosis Water Treatment Solution

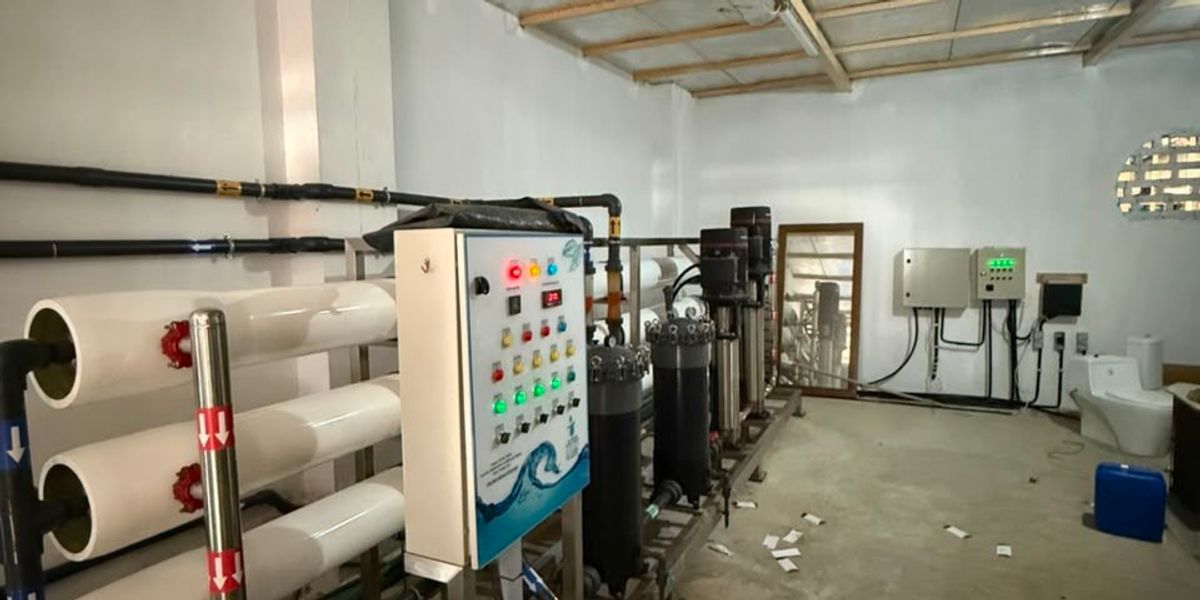

This project involved the design, supply and installation of an 80,000 GPD Reverse Osmosis (RO) Water Treatment System designed to provide a reliable supply of high-quality treated water for high-demand applications.

With a production capacity of approximately 303 m³/day, the system incorporates multi-stage pretreatment, high-pressure pumping and advanced RO membrane technology to reduce dissolved salts, TDS, hardness and other contaminants from the incoming water.

Project Capacity

  • RO Capacity: 80,000 GPD
  • Daily Production: Approximately 303 m³/day
  • Treatment Technology: Reverse Osmosis
  • System Type: High-capacity packaged RO plant
  • Application: High-demand water purification

Treatment Process

Raw Water → Feed Pump → Multimedia Filter → Activated Carbon Filter → Cartridge Filtration → High-Pressure Pump → RO Membranes → Treated Water

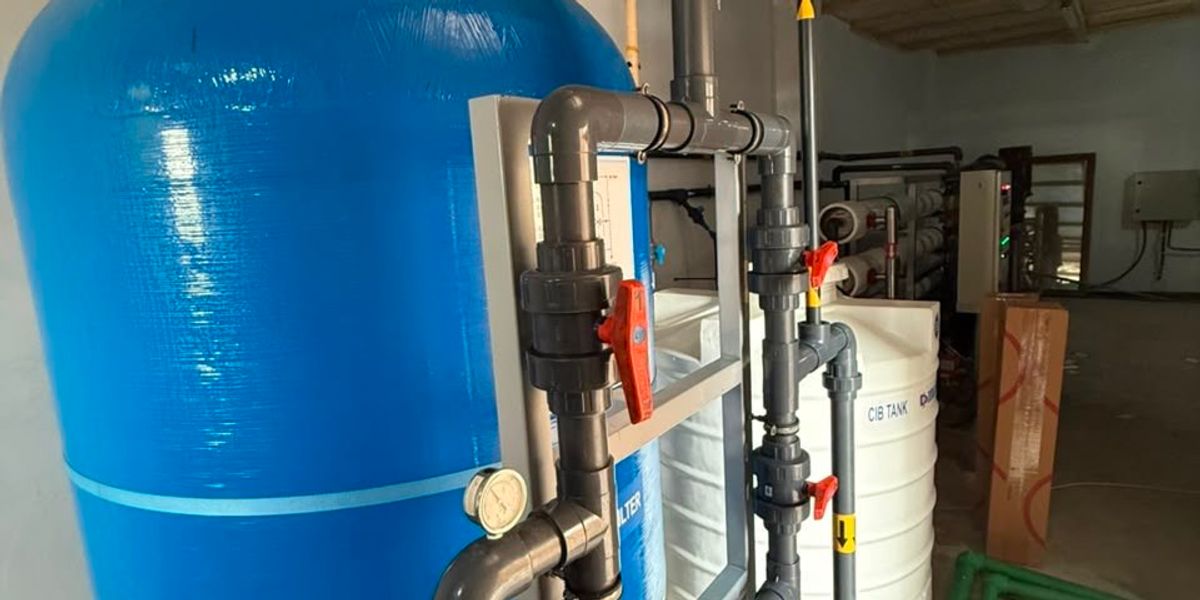

The pretreatment system removes suspended solids, turbidity and chlorine before the water enters the RO stage. Fine cartridge filtration provides additional protection for the RO membranes.

The high-pressure pump then supplies the required operating pressure to the RO membrane system, where dissolved salts, TDS and other contaminants are significantly reduced.

Key Features

  • 80,000 GPD production capacity
  • Approximately 303 m³/day treated-water production
  • High-efficiency RO membrane technology
  • Multi-stage pretreatment
  • Multimedia filtration
  • Activated carbon filtration
  • Cartridge filtration
  • High-pressure pumping system
  • Flow and pressure monitoring
  • TDS/conductivity monitoring
  • Automatic control system
  • Robust skid-mounted equipment
  • Designed for continuous and reliable operation

Major Equipment

The system includes the major equipment required for complete RO treatment, including:

  • Feed water pumping system
  • Multimedia filtration system
  • Activated carbon filtration system
  • Cartridge filter housings
  • High-pressure pumps
  • RO membrane pressure vessels
  • RO membranes
  • Flow meters
  • Pressure gauges
  • Conductivity/TDS monitoring
  • Control panel
  • Automatic control components
  • Interconnecting piping and valves
  • Structural skid and supports

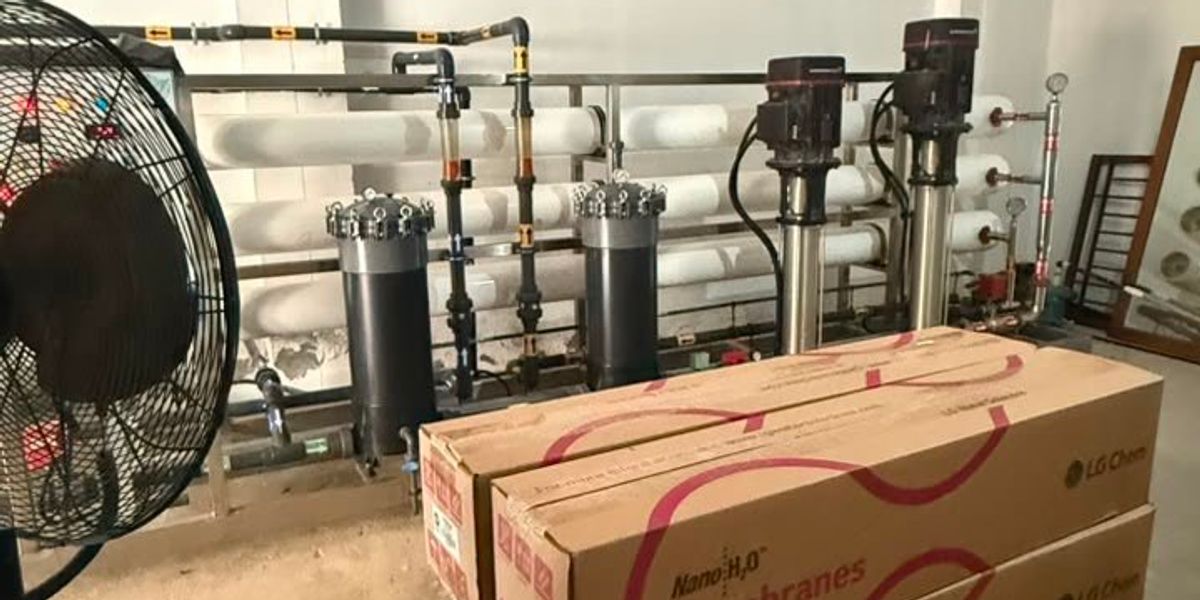

RO Membrane System

The RO stage forms the core of the treatment plant and is designed to provide high removal of dissolved salts and other contaminants.

The membrane configuration and operating conditions are selected according to the raw-water characteristics and required production capacity. Proper pretreatment is provided to minimize membrane fouling and scaling and to maintain stable system performance.

Water Recovery

The system can be designed for a recovery rate of approximately 60–80%, depending on the raw-water quality and membrane operating conditions.

The RO reject stream is discharged to the designated drainage system or can be considered for suitable non-potable reuse where applicable.

Control & Monitoring

The RO plant is equipped with suitable control and monitoring instruments to allow safe and efficient operation.

The system monitors key operating parameters including:

  • Feed pressure
  • RO operating pressure
  • Product flow
  • Reject flow
  • Product-water TDS/conductivity
  • Tank levels
  • Pump operating status

Automatic controls can stop the system during abnormal conditions such as low feed-water level, high pressure or treated-water tank high level.

Installation & Commissioning

The project scope includes the installation of the supplied RO equipment, connection of the treatment components, testing of the system and commissioning.

During commissioning, the equipment, pumps, controls, flow rates, operating pressures and treated-water quality are checked to ensure that the system operates according to the required design conditions.

Project Benefits

The 80,000 GPD RO system provides:

  • High-volume treated-water production
  • Significant reduction of TDS and dissolved salts
  • Reliable and consistent water purification
  • Automated system operation
  • Efficient membrane treatment
  • Easy monitoring and maintenance
  • Robust construction for demanding applications
  • Scalable and serviceable system design

Conclusion

The 80,000 GPD Reverse Osmosis Water Treatment System provides a high-capacity and reliable solution for applications requiring substantial volumes of purified water. The combination of effective pretreatment, high-pressure RO technology, automated controls and comprehensive monitoring allows the system to operate efficiently while protecting the RO membranes and maintaining treated-water quality.

The final RO configuration and operating parameters are selected according to the raw-water analysis and project requirements.
